Description

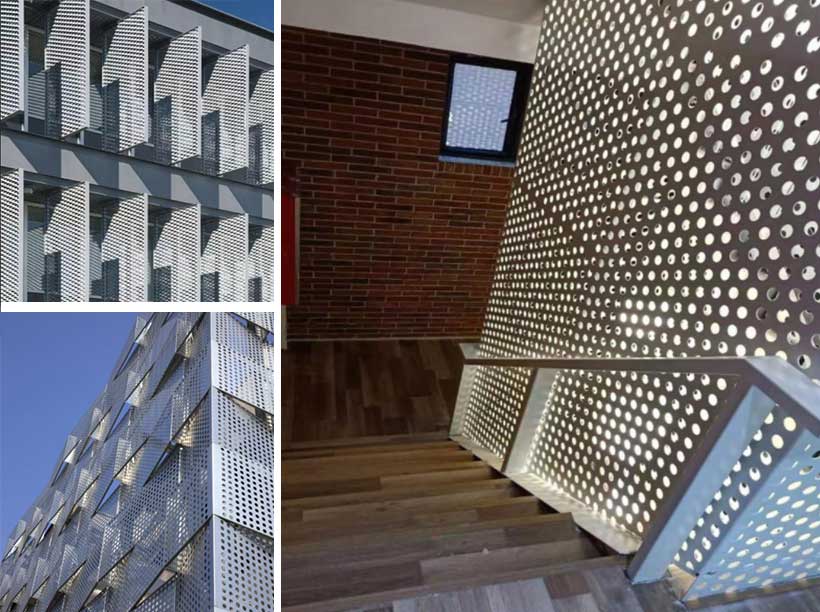

The round hole perforation is the most popular type of perforated pattern. Perforated metal is described by the hole size and the pitch. The pitch is the distance from the centre of one hole to the centre of the adjacent holes. All our perforated sheets are on a triangular pitch.

Parameter

ROUND HOLES STAGGERED PATTERN
HOLE	CENTERS	GAUGE / PLATETHICK.	OPEN AREA
.020" RD	.045" Stag	26	18%
1/32" RD	1/16" Stag	22	23%
3/64" RD	5/64" Stag	24	33%
3/64" RD	3/32" Stag	22 thru 18	23%
1/16" RD	3/32"Stag	22 thru 16	40%
1/16" RD	7/64" Stag	20 thru 16	30%
1/16" RD	1/8" Stag	26 thru 16	23%
5/64" RD	1/8" Stag	22 thru 14	35%
3/32" RD	5/32" Stag	24 thru 14	33%
3/32" RD	3/16" Stag	24	23%
.117 RD	5/32" Stag	18	51%
1/8" RD	3/16" Stag	24 thru 11	40%
1/8" RD	7/32" Stag	14 thru 12	30%
1/8" RD	1/4" Stag	14, 13	23%
9/64" RD	3/16" Stag	18	51%
5/32" RD	3/16" Stag	22 thru 16	63%
5/32" RD	1/4" Stag	20 thru 10	35%
3/16" RD	7/32" Stag	22 thru 16	67%
3/16" RD	1/4" Stag	24 thru 12	51%
3/16" RD	5/16" Stag	10, 3/16"	33%
3/16" RD	3/8" Stag	14 thru 10	23%
1/4" RD	5/16" Stag	20 thru 16	58%
1/4" RD	3/8" Stag	26 thru 1/4"	40%
17/64" RD	5/16" Stag	20	66%
5/16"RD	7/16" Stag	20 thru 1/4"	46%
3/8" RD	9/16" Stag	20 thru 1/4"	40%
1/2" RD	11/16" Stag	20 thru 1/4"	48%
1/2" RD	3/4" Stag	16	40%
5/8" RD	7/8" Stag	10 thru 1/4"	46%
3/4" RD	1" Stag	16 thru 1/4"	51%
1" RD	1-3/8" Stag	10 thru 1/4"	48%
1-1/4" RD	1-5/8" Stag	1/4"	54%
1-1/2" RD	2" Stag	1/4"	51%
2" RD	2-1/2" Stag	1/4"	58%
2-1/2" RD	3" Stag	3/16"	63%
3" RD	3-1/2" Stag	3/16"	67%
4" RD	4-1/2" Stag	10	72%
Note: Special size and specifications can be made according to customers' requirements.

After-sales service

Guardrail products are relatively large, generally not special circumstances, we do not support express delivery, generally choose logistics, logistics to send large items convenient and fast, the price is favorable, so we try to choose logistics delivery, if there is no fixed logistics point, we try to find the right logistics for you.

① About transportation Guardrail for large goods, to each place the freight is different, before the purchase need to communicate with the sales staff freight problems. ② About quality We increase the quality of the products, but the transportation of heavy goods will inevitably bump, slight scratches, not serious please paint and repair, if the impact of logistics, please contact logistics in time to blame. ③ About error Due to light, shooting equipment, display and other factors, the product picture may appear different degrees of color difference, are normal phenomena, the actual color to receive the physical prevail. ④ About receiving goods The driver will call in advance to inform the place and time of unloading, please pick up the goods according to the agreed time and place; When we cannot get away, we are willing to help negotiate with the cargo station, but we will not be responsible for the costs and consequences arising from failure to pick up the goods on time due to personal reasons. Note (remember to ask the driver for accessories when receiving the goods) It is recommended to count the number and check whether there is damage in front of the driver, if there is a problem do not let the driver leave. ⑤ Contact us If you need other styles of guardrail net, please contact online customer service!For large or customized customers.【Email US】【Whatsapp】
